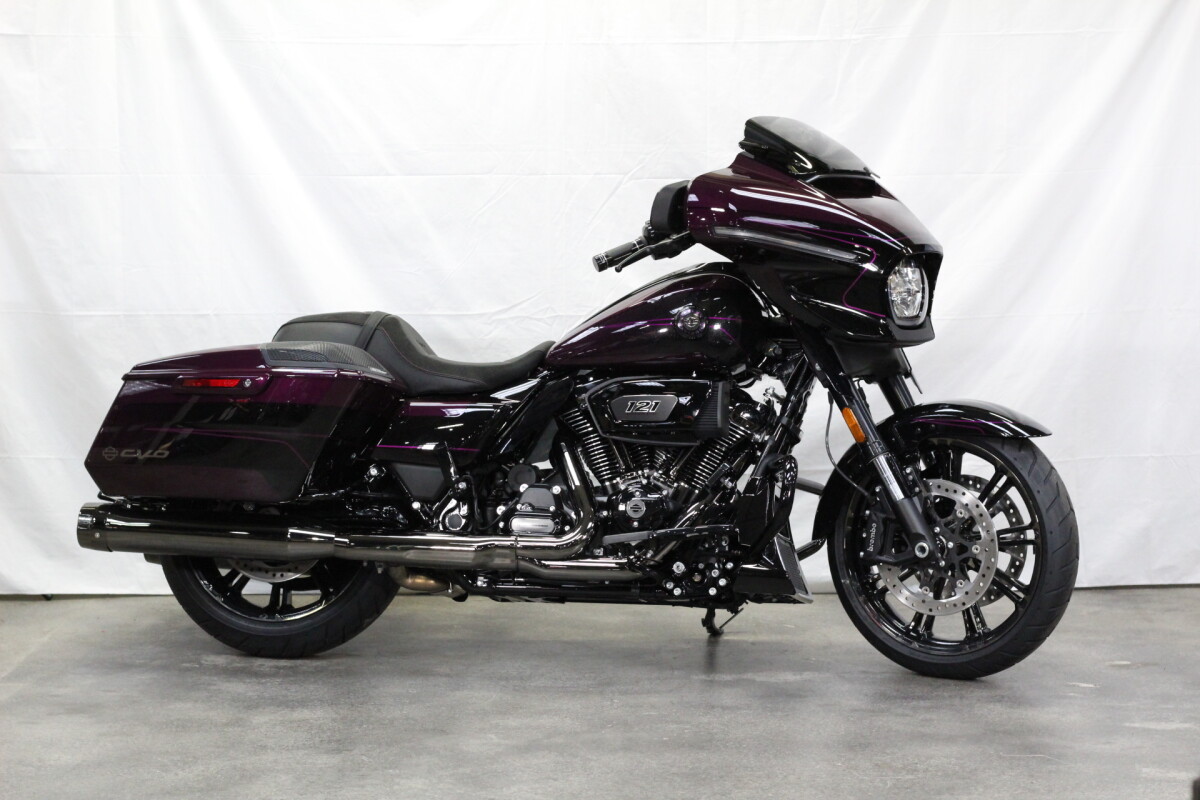

Equipped with the best of everything straight from the factory, the CVO Street Glide is a Batwing bagger loaded with the latest tech and premium custom detailing—like the VVT 121 engine, high-performance audio, exclusive paint, and contrast-cut wheels—setting the stage for unmatched performance and style.

Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Dealer prices may vary.Due to continued challenges across supplier networks as well as increasing logistics costs, product pricing, freight charges, specifications, and features are subject to change at any time without prior notice. Please confirm all information with your local dealership.Images, where available, are presented as reasonable facsimiles of the offered unit and/or manufacturer stock images. Non-standard options or features may be represented. No guarantee of availability or inclusion of displayed options should be inferred; contact the dealer for more details.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Overall width:

  38.4 in
- Overall height:

  53.1 in
- Seat height, unladen:

  28.1 in
- Ground clearance:

  5.5 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Weight, in running order:

  838 lb
- Luggage capacity – volume:

  2.2 cu ft (0.062 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Fork angle:

  30
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Air cleaner:

  Synthetic Felt, Washable
- Exhaust:

  2-1-2 dual exhaust
- Lubrication system:

  Pressurized, dry-sump
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  139.4 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  115 HP / 86 kW @ 4500 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  45 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
- Final drive:

  Belt, 32/68 ratio
- Clutch:

  Mechanically actuated 10 plate, wet Assist & Slip
- Transmission:

  6-Speed Cruise Drive®
Chassis

add remove
- Front fork:

  47 mm Inverted 1x1 Front Forks
- Rear shocks:

  Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
- Wheels, front type:

  Gloss black, 9-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 9-spoke cast aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
- Frame:

  Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
- Swingarm:

  Mild steel, two piece drawn and welded section; forged junctions; MIG welded
Infotainment

add remove
- Screen size:

  12.3 in
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson Packtalk Edge wireless Bluetooth® headset
- AM:

  Standard
- FM:

  Standard
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately)
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage
- Bluetooth:

  Phone/Media Player, Headset
