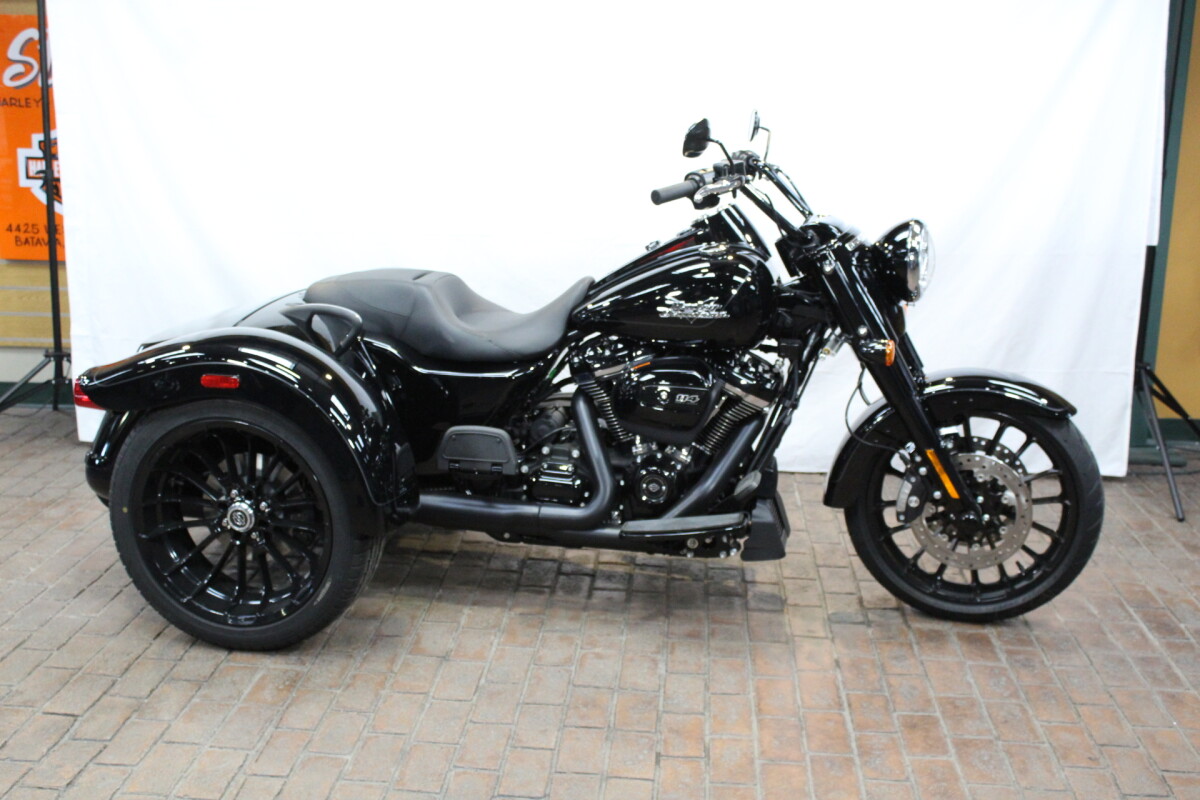

The Harley-Davidson® Freewheeler delivers aggressive styling, enticing performance, and confident handling on three wheels.

Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Dealer prices may vary.Due to continued challenges across supplier networks as well as increasing logistics costs, product pricing, freight charges, specifications, and features are subject to change at any time without prior notice. Please confirm all information with your local dealership.Images, where available, are presented as reasonable facsimiles of the offered unit and/or manufacturer stock images. Non-standard options or features may be represented. No guarantee of availability or inclusion of displayed options should be inferred; contact the dealer for more details.

Specifications

Dimensions

add remove
- Length:

  103.0 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  26
- Trail:

  4.0 in
- Wheelbase:

  65.7 in
- Tires, front specifications:

  MT 130/60B19 M/C 61H
- Tires, rear specifications:

  P215/45R18 83T
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,076 lbs
- Weight, in running order:

  1110 lb
- Luggage capacity – volume:

  2 cu ft (0.06 m³)
- Tire, type:

  Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Shorty slash down-style chrome finish mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  121.7 ft-lb
- Engine torque (RPM):

  2750
- Horsepower:

  90 HP / 67 kW @ 4750 rpm
- Lean angle, right (deg.):

  N/A
- Lean angle, left (deg.):

  N/A
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  42.8 mpg (5.5 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  151 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Front fork:

  49mm dual bending valve
- Rear shocks:

  Hand-adjustable emulsion rear suspension
- Wheels, front type:

  Cast aluminum
- Wheels, rear type:

  Cast aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Electric

add remove
- Lights (as per country regulation), indicator:

  Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Incandescent
- Gauges:

  Speedometer, fuel gauges; display features odometer, trip A, trip B, range to empty, and gear indicator
